Corvette Workshop Manual, Repair Guide and Wiring Diagrams
A Corvette workshop manual gives owners, restorers and technicians the model-specific information needed to maintain, diagnose and repair Chevrolet’s sports car correctly. This category covers selected 1982 C3, 1984–1996 C4, 1997–2004 C5, 2005–2013 C6 and 2014–2017 C7 Corvette models.
Manuals are available for key engine variations, including the 5.7L small-block, LT5 DOHC ZR-1, LT1 and LT4, LS1 and LS6, LS2, LS3, LS7, supercharged LS9 and C7 6.2L LT1 applications. Relevant owner searches also include Chevrolet factory service manual, Chevrolet repair manual PDF, wiring diagram, torque specs, and transmission repair information.
Finding the Right Corvette Manual for Your Model
Start with the model year, then confirm the generation, engine size, transmission, and eighth character of the VIN where required. A manual that appears similar may still contain different wiring, control modules, torque values, or diagnostic procedures.
The 1982 model is the final C3 year. The C4 runs from 1984 through 1996, the C5 from 1997 through 2004, the C6 from 2005 through 2013 and the C7 from 2014 through 2019. This category currently concentrates on manuals through 2017.
| Corvette range |
Key manual choice |
What to verify |
| 1982 C3 |
5.7L final-year C3 manual |
Cross-Fire injection and automatic transmission |
| 1984–1989 C4 |
Year-specific 5.7L manual |
Fuel injection, digital instruments and transmission |
| 1990–1995 C4 |
Standard 5.7L or DOHC ZR-1 manual |
L98/LT1 versus LT5 engine |
| 1996 C4 |
VIN P or VIN 5 manual |
VIN P LT1 versus VIN 5 LT4 |
| 1997–2004 C5 |
5.7L manual by year and VIN |
VIN G LS1 versus VIN S LS6 where applicable |
| 2005–2013 C6 |
6.0L, 6.2L, 7.0L or supercharged 6.2L |
Base, Grand Sport, Z06 or ZR1 |
| 2014–2017 C7 |
6.2L C7 manual |
Stingray/Z51 coverage and transmission |
For an original late-C3 car, use the 1982 Corvette 5.7L service and repair guide instead of a broad generic Chevrolet manual. ZR-1 owners should choose a dedicated guide such as the 1993 Corvette LT5 DOHC workshop manual, because the LT5’s 32-valve DOHC layout differs substantially from the standard C4 V8.
What Is Included in a Corvette Workshop or Repair Manual?
A detailed Corvette repair manual PDF can support routine servicing, fault diagnosis and major mechanical work. Depending on the year, useful sections may include:
- Maintenance schedules, fluids, capacities and inspection points
- Engine repair, cooling, lubrication, fuel injection and ignition
- Automatic and manual transmission removal and repair
- Clutch, torque tube, driveshaft, differential and rear axle procedures
- Brake, steering, suspension and alignment information
- HVAC, body, glass, weather seal and convertible-top procedures
- Diagnostic trouble codes, test sequences and component locations

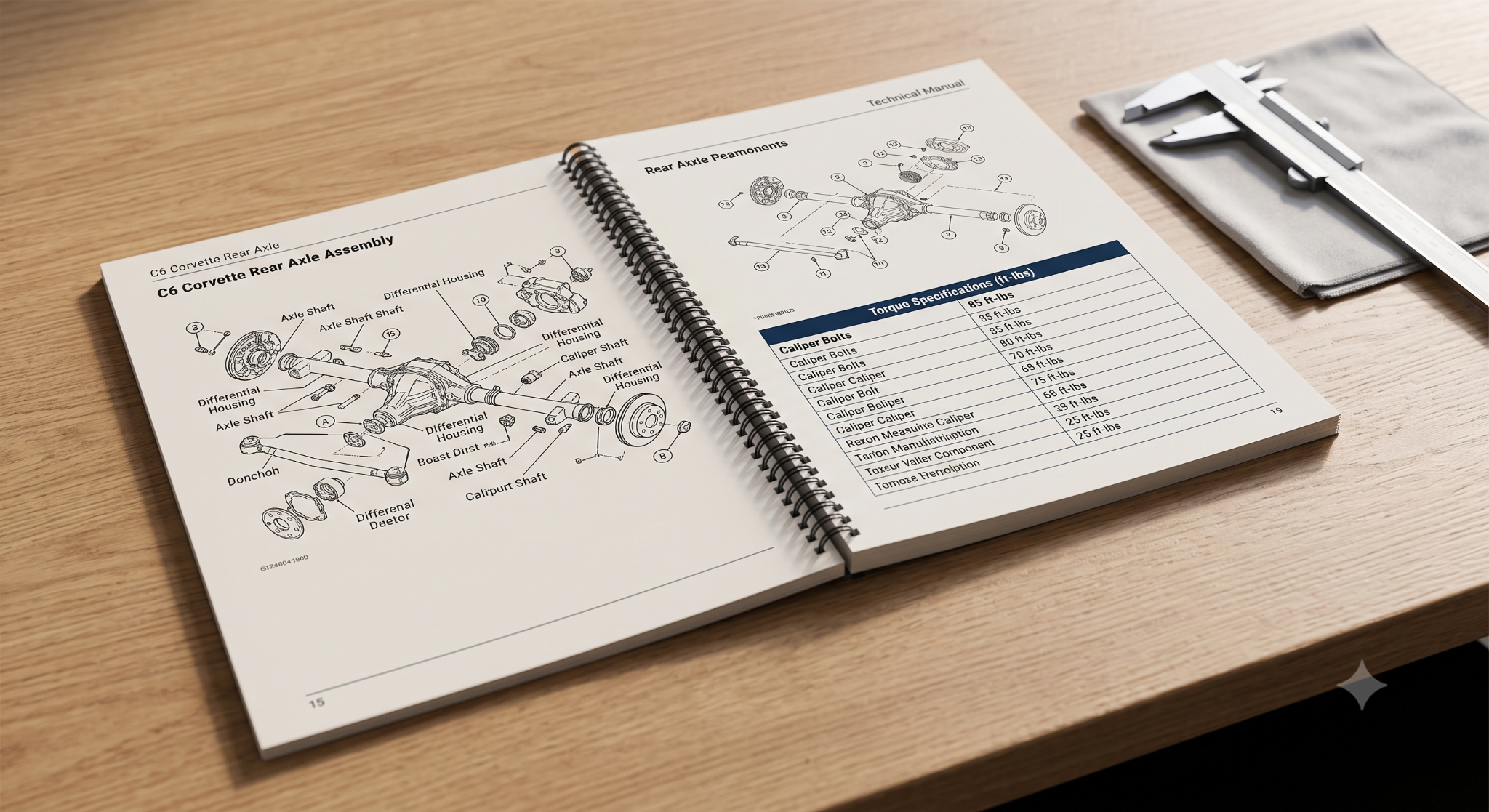

- Fastener tightening sequences and Chevrolet torque specifications
- Fuse, relay, connector, ground and wiring diagrams
For first-year C6 work, the 2005 Corvette 6.0L workshop service manual is the more relevant choice for LS2 engine, transmission, electronic-control and chassis procedures.
Common Corvette Repairs and Problems Covered
A factory-style manual is most useful when one symptom has several possible causes. It helps you test the circuit or component before replacing parts.
C4 owners often investigate digital dash faults, headlamp motors, cooling fan relays, injectors, weatherstrip leaks, Bose audio problems, and intake leaks. Later cars may also need OptiSpark, power-window or door-panel diagnosis. Owner discussions frequently recommend a factory service manual because its wiring and diagnostic trees are more complete than simplified guides.
C5 owners commonly research steering-column lock warnings, ABS/traction-control EBCM faults, inaccurate fuel-level readings, differential leaks, door modules and harmonic-balancer wobble. These symptoms can overlap with low voltage, damaged grounds or communication faults.
C6 repair topics often include harmonic-balancer deterioration, fuel smell or tank-fitting leaks, shift-cable or park-interlock faults, battery-related electrical issues, torque-tube noise and model-specific engine concerns. For a supercharged application, use a dedicated guide such as the 2009 Corvette 6.2L supercharged repair manual.
C7 troubleshooting may involve infotainment faults, cooling, HVAC, driveline vibration, torque-tube noise, active handling, keyless entry, and network communication. The correct diagnostic chart helps separate mechanical faults from module, connector, or wiring problems.
Corvette Wiring Diagrams and Electrical Troubleshooting
Corvette electrical systems became increasingly complex from the C4 onward. A useful Corvette wiring diagram shows circuit paths, connector pin numbers, fuse and relay locations, splice points, grounds, and wire identification.
Before replacing a motor, sensor or module, check:
- Battery condition and charging voltage
- Fuse and relay operation
- Power supply and ground integrity
- Connector corrosion, loose terminals or damaged wiring
- Reference voltage, signal return and stored trouble codes
This process is useful for digital clusters, pop-up headlamps, cooling fans, power seats, door modules, ABS, active handling, fuel pumps, keyless entry and infotainment systems.
Corvette Manual Types, Models and Engine Coverage
Selecting the correct workshop manual depends on your specific model year, engine variation, and VIN. Use these detailed guides to find the precise technical documentation required for your Corvette’s drivetrain, electrical systems, and chassis repairs.
- 1982 C3 5.7L Manual: Covers the final C3 model year, including the Cross-Fire Injection 5.7L V8, automatic transmission, vacuum equipment, brakes, suspension, and body systems.
- 1984–1989 C4 5.7L Manuals: Year-specific guides for early C4 servicing, digital instruments, headlamp motors, fuel injection, cooling fans, drivetrain and electrical diagnosis.
- 1990–1995 C4 Standard and ZR-1 Manuals: Standard manuals cover L98 or LT1 cars by year. Separate 5.7L DOHC manuals are intended for the LT5-powered ZR-1, whose engine and controls are not interchangeable with the pushrod V8.

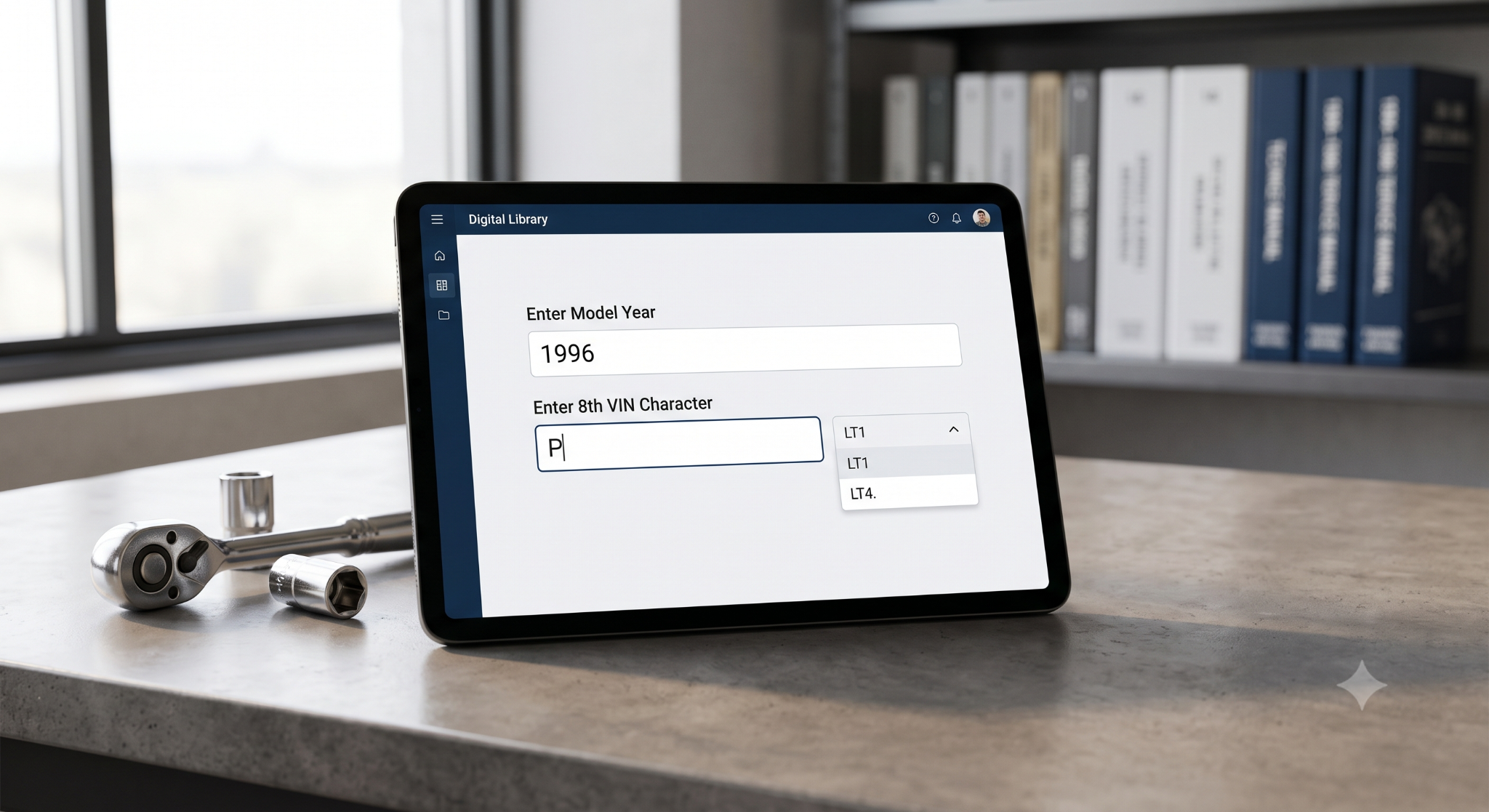

- 1996 C4 VIN P and VIN 5 Manuals: Choose by the eighth VIN character. VIN P identifies the 5.7L LT1, while VIN 5 identifies the higher-output LT4.
- 1997–2004 C5 5.7L Manuals: These cover the C5 chassis, LS engine systems, rear transaxle, active handling and body electronics. For 2001–2004 cars, the VIN-specific C5 manual for the LS6 application should not be confused with VIN G LS1 coverage.
- 2005–2007 C6 6.0L LS2 Manuals: Suitable for early C6 service, including LS2 engine, cooling, fuel delivery, transmission, brakes and electronic systems.
- 2006–2013 C6 7.0L LS7 Manuals: Designed for Z06 models with the 7.0L LS7, including dry-sump lubrication and Z06-specific drivetrain and chassis information.
- 2008–2013 C6 6.2L LS3 Manuals: Appropriate for later base and Grand Sport models using the naturally aspirated 6.2L LS3.
- 2009–2013 C6 6.2L Supercharged Manuals: Intended for ZR1 models using the supercharged LS9, including forced-induction, cooling, fuel, and engine-management systems.
- 2014–2017 C7 6.2L Manuals: The 2014–2017 Corvette C7 6.2L factory-style repair guide supports LT1 engine systems, automatic or manual transmission work, body electronics, wiring diagrams, and chassis diagnosis.
A listing showing a 2012 Corvette 1.4L engine should be checked before purchase. Factory 2012 Corvette applications used 6.2L LS3, 7.0L LS7 or supercharged 6.2L LS9 engines, not a 1.4L engine.
Commonly Asked Questions About the Corvette Workshop Manual
Is a Corvette workshop manual the same as an owner’s manual?
No. An owner’s manual explains controls and basic maintenance. A workshop or factory service manual provides repair procedures, specifications, diagnostics, wiring and removal instructions.
Can I use one manual for every Corvette year?
Usually not. Engine controls, transmissions, wiring, brakes and body electronics change by year and trim. Match the manual to the year, engine and VIN.
Does a Corvette service manual include wiring diagrams?
Many comprehensive manuals do, but confirm coverage on the product page. Look for system diagrams, connector views, fuse information, and ground locations.
Why does the VIN matter?
The eighth VIN character can identify the engine. For example, 1996 VIN P and VIN 5 manuals cover different engines, while later C5 listings distinguish VIN G LS1 and VIN S LS6 applications.
Are these manuals useful for restoration?
Yes. They can support disassembly, factory routing, body adjustment, electrical repair, torque settings, and mechanical rebuilding. Cosmetic originality may still require a dedicated restoration guide.
Choose the Corvette service manual that matches your exact year, engine, VIN, and transmission. The correct guide reduces guesswork and helps you complete maintenance and repairs with the proper procedures, diagrams and specifications.
