Transmission Limp Mode & Solenoid Testing: What the Code Isn’t Telling You

Avoid replacing parts immediately when a transmission enters limp mode. Replacing a solenoid without proper testing often leads to recurring failures caused by contaminated fluid, wiring damage, or a faulty TCM.

Prevent misdiagnosis by determining if the fault is electrical, mechanical, or fluid-based. Limp mode, which typically restricts the gearbox to 2nd or 3rd gear, can be diagnosed by checking for 5–30 ohms of resistance and verifying a mechanical “click” with 12V power.

This guide explains the complete transmission and solenoid diagnostic process, from initial code reading to final repair verification.

Transmission Limp Mode & Solenoid Testing: Why One Code Has Three Different Root Causes

Limp mode triggers when the TCM detects severe faults, locking the gearbox in second or third gear to prevent damage. While codes P0750–P0770 pinpoint an affected solenoid circuit, they do not specify the cause of failure.

Accurate repair requires identifying which of three failure paths is responsible. Distinguishing between these paths ensures the correct tools and tests are used, preventing misdiagnosis and recurring issues.

Step 1: Read the Fault Code Category Before Anything Else

The DTC description is more useful than most people realize. The exact wording tells you which test to run first and saves significant time before touching the transmission.

Solenoid DTCs follow a specific pattern:

Code Range	Circuit Affected	Fault Type Indicated
P0750-P0770	Shift Solenoids A, B, C	Electrical circuit malfunction
P0960-P0972	Pressure Control Solenoids	Electrical or range/performance fault
P0776-P0798	Pressure Control Solenoids	Out of range / mechanical stuck
P0841-P0848	Transmission Fluid Pressure Sensor	Pressure circuit fault

Notice the distinction: codes ending in ‘electrical circuit fault’ point to wiring, connectors, or the TCM before the solenoid itself. Codes ending in ‘range’ or ‘performance fault’ point to the solenoid’s mechanical operation or fluid condition.

Pull the full freeze frame data alongside the fault code. Check engine RPM, vehicle speed, transmission temperature, and commanded versus achieved gear at the moment of fault. This data indicates whether the fault occurred under specific load conditions, narrowing the failure to a particular shift event rather than a general system fault.

For sourcing the correct factory-documented resistance specifications and wiring diagrams for your specific vehicle, having reliable access to OEM documentation matters far more than generic online specs. This guide on Where to Download Genuine OEM Workshop Manuals covers the most trusted sources currently available.

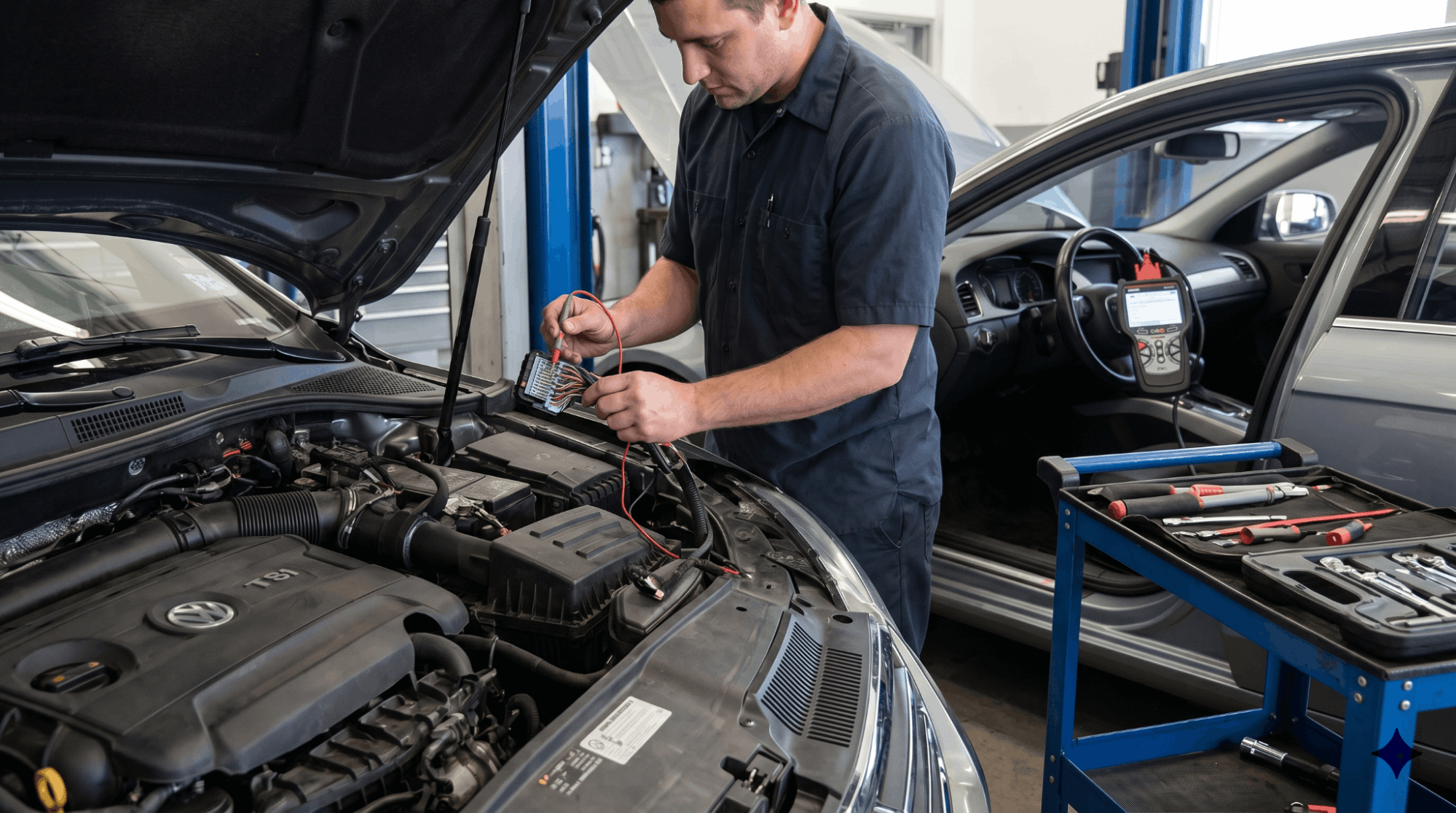

Step 2: Test the Wiring and Connector Before Removing Anything

The majority of solenoid fault codes on high-mileage vehicles trace back to the wiring harness or the transmission connector, not the solenoid itself. This is particularly common on GM, Ford, and Chrysler platforms, where the external harness runs close to the exhaust and can degrade over time due to heat-related insulation issues.

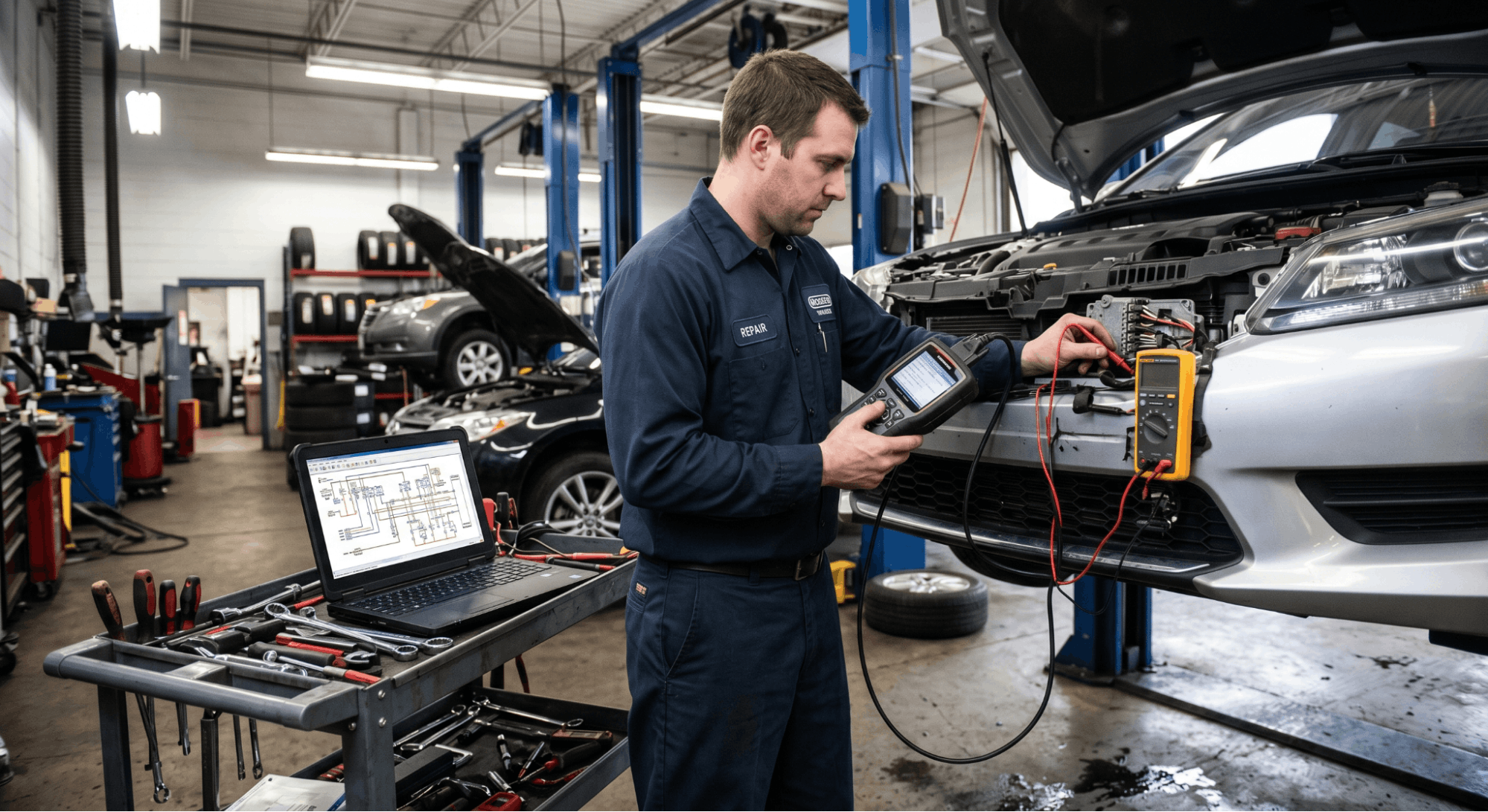

Before dropping the transmission pan, run these external checks:

• Disconnect the transmission harness connector and inspect every terminal for corrosion, pushed-back pins, or moisture damage
• Measure the supply voltage at the solenoid harness connector with the ignition on. You should see 12V on the power feed terminal for the affected solenoid circuit
• Measure ground continuity from the solenoid ground terminal back to the TCM ground. A reading above 1 ohm indicates a degraded ground path, which can produce solenoid fault codes without any hardware failure
• Wiggle-test the harness while watching live solenoid data on the scan tool an intermittent drop in commanded status confirms a wiring fault before the pan comes off

A clean 12V supply, a ground below 0.5 ohms, and no signal drops under wiggle testing mean the wiring is not the issue. Only then does it make sense to move to internal solenoidtesting.

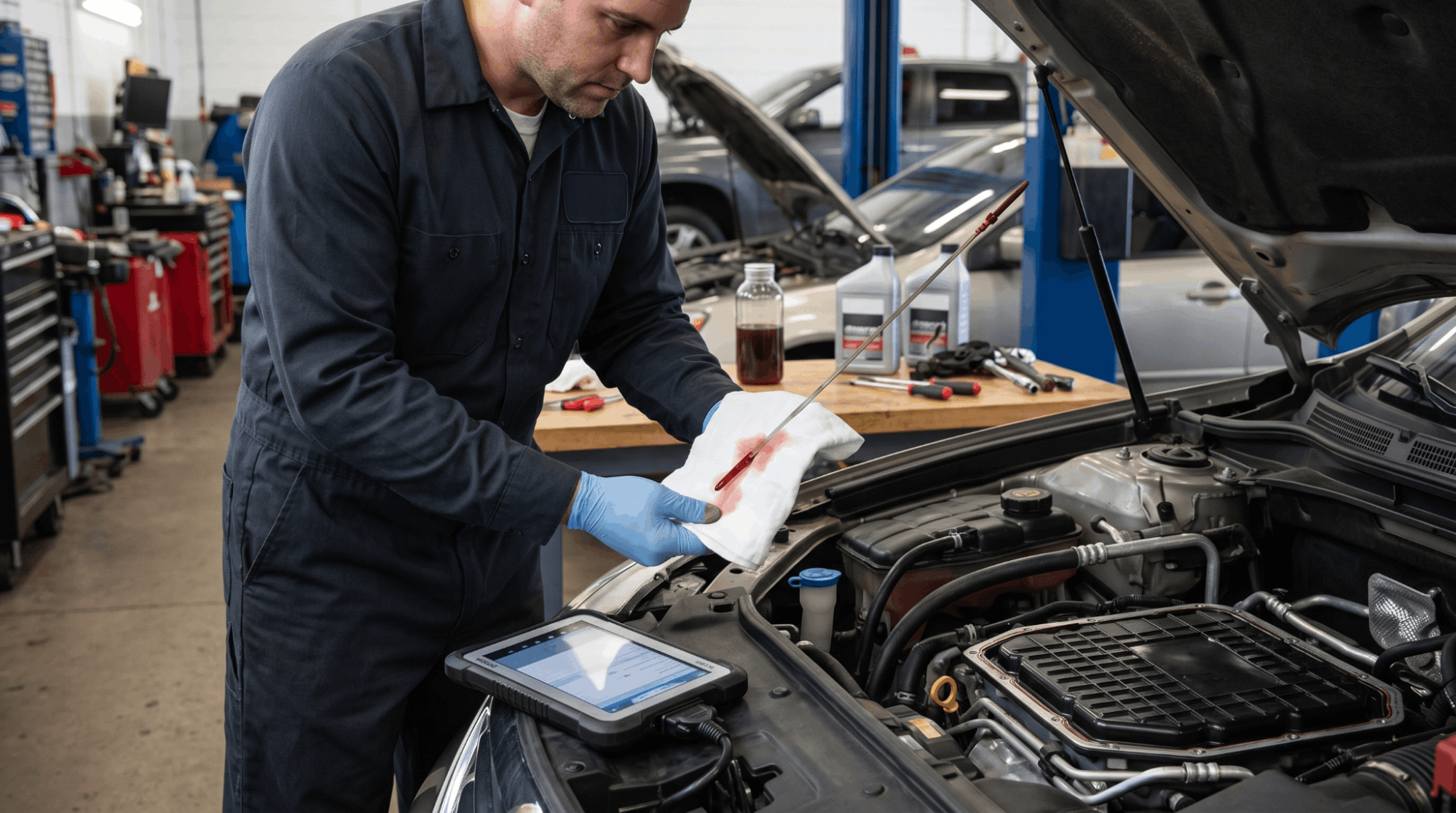

Step 3: Check Transmission Fluid Condition Before Internal Testing

This step gets skipped more often than any other in solenoidtesting — and it is the one that most frequently causes a replaced part to fail again within a few thousand miles.

Transmission fluid is the operating environment for every solenoid in the valve body. A solenoid is an electro-hydraulic valve, meaning it uses magnetic force to move a valve that regulates fluid pressure. Contaminated fluid introduces metallic debris, sludge, and varnish deposits that physically restrict solenoid movement even after electrical tests pass perfectly.

Check these fluid indicators before proceeding:

• Color: The new fluid is red or pink. Dark brown or black fluid indicates heat degradation and internal friction material breakdown
• Smell: A burnt odor confirms fluid has been operating above safe temperature limits
• Metallic content: Rub a small amount between your fingers. Fine metallic particles indicate clutch pack or band wear debris that circulates through the solenoid passages
• Fluid level: Low fluid causes inconsistent hydraulic pressure, which can trigger pressure control solenoid codes without any component failure

If the fluid condition is marginal or poor, a transmissionflush followed by a code-clear and a test drive should be the next step before any component is replaced. Many P0750 to P0770 codes resolve entirely with a fluid change and do not recur.

Step 4: Resistance Test the Solenoid with a Digital Multimeter

With the wiring confirmed clean and the fluid in acceptable condition, internal solenoidtesting can begin. The resistance test is the definitive electrical check for solenoid coil integrity.

Access procedure:

1. Drain transmission fluid and remove the pan
2. Locate the valve body and identify the affected solenoid using your service manual’s valve body diagram
3. Disconnect the internal wiring harness from the solenoid terminals
4. Set your DMM to resistance mode (ohms)
5. Touch the probes to the two terminals on the solenoid body

Standard resistance specifications by solenoid type:

Solenoid Type	Typical Resistance Range	Out of Range Result
Shift Solenoid (on/off type)	10 to 15 ohms	Open coil (OL) or short (below 5 ohms)
Pressure Control Solenoid (variable)	3 to 6 ohms	Open or short indicates coil failure
Torque Converter Clutch Solenoid	12 to 25 ohms	Varies significantly by manufacturer

Always cross-reference against your vehicle’s factory specification. The ranges above are typical, not universal. A reading that falls within a generic spec but outside your manufacturer’s tighter tolerance will still cause a fault.

If resistance is in range, perform an activation test: apply regulated 12V directly to the solenoid terminals using jumper wires from a known clean power source. Listen and feel for a firm, audible click as the valve opens.

No click at the correct voltage confirms a mechanically stuck solenoid, common when sludge or varnish holds the valve in a fixed position.

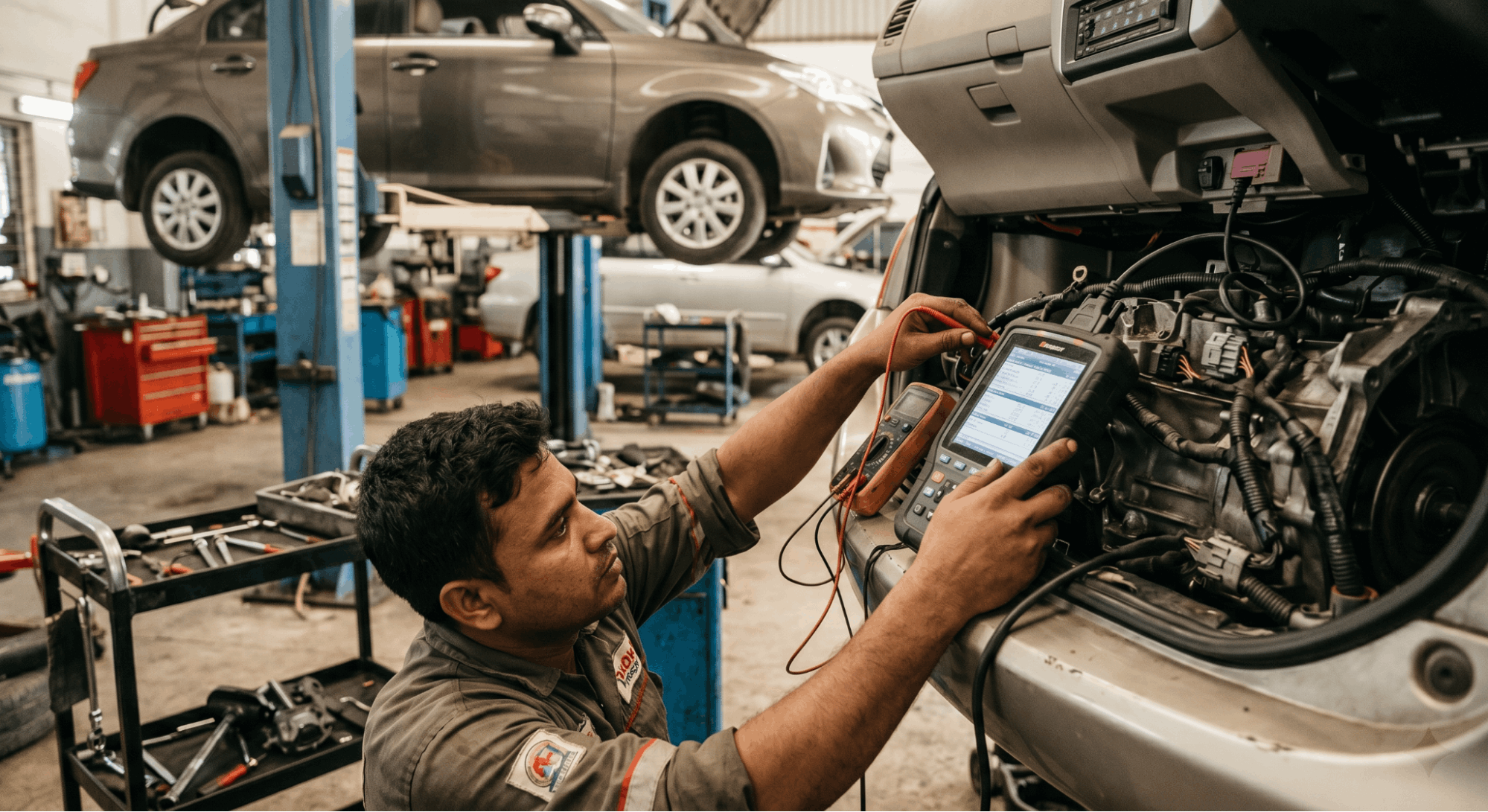

Step 5: Confirm the TCM Is Not the Actual Fault Source

A failed or degraded TCM can output incorrect commands to functioning solenoids, generate false fault codes, and send a transmission into limpmode without any hardware fault in the gearbox itself. This diagnosis point is often missed, particularly after a solenoid replacement fails to clear the condition.

Use a bidirectional scan tool to perform active output tests on the affected solenoid circuit:

• Command the solenoid to activate and deactivate through the scan tool
• Measure the voltage at the solenoid harness connector while commanding it active, you should see the output voltage switch from 12V to near 0V (ground switching)
• If the output does not switch despite a correctly functioning solenoid, the TCM output driver has failed

TCM issues also produce these associated symptoms:

• Multiple solenoid codes are appearing simultaneously across different solenoid circuits
• Fault codes that return immediately after clearing, even with a replacement solenoid installed
• Limpmode activation without any stored DTCs (rare, but possible with TCM memory corruption)

For complex cases where the diagnosis points toward TCM failure or a valve body rebuild, the decision between DIY repair and professional assistance carries real financial implications. This practical breakdown of Digital Car Manuals vs. Mechanic Advice helps put that decision in a clear, cost-aware context.

If you are building your diagnostic reference library and need guidance on which workshop manual types offer the most complete transmission wiring and valve body documentation, this resource, How to Choose the Right Workshop Repair Manual for Your Vehicle, is a solid starting point.

Before committing to any single online manual source for solenoid resistance specs or TCM wiring diagrams, it is also worth reviewing this objective look at Are Free Online Car Repair Manuals Safe, particularly relevant when the test values you use determine whether a part gets replaced.

Conclusion

Transmissionlimpmode with a solenoid fault code is a starting point, not a verdict. The code identifies a circuit your testing sequence identifies the cause. Work through the wiring, fluid condition, resistance measurement, and activation test in that order before replacing any component.

Most solenoid replacements that fail to clear limpmode trace back to one of two things: a wiring fault that was never tested, or contaminated fluid that was never addressed. Nail down the actual failure path, and the repair holds the first time.

Frequently Asked Questions

Low fluid often triggers limp mode by causing pressure sensor readings to fall outside expected ranges. In such cases, the TCM may store a pressure circuit DTC rather than a solenoid code.

Always verify fluid levels before diagnosing circuits, as topping up and clearing codes might fix the issue if no mechanical damage occurred.

Limp mode behavior depends on the manufacturer and specific fault. Domestic models often default to second or third gear for drivability, while European ZF units may lock into third or other preset ratios.

Some TCM settings might disable only reverse or forward ranges based on the failed solenoid circuit. Consult your factory service manual for exact model-specific behavior and diagnostic implications.

Yes. Multimeter tests only verify the electrical coil. A solenoid can show correct resistance even if the mechanical valve is stuck due to sludge, varnish, or heat warping.

This results in normal electrical readings but zero hydraulic function. Always perform an activation test with 12V to listen for a click, ensuring the valve is moving before clearing the part for service.

Certain TCM calibrations reset limp mode after cycling the ignition if faults are non-critical or intermittent. This is typical for “soft” faults that don’t immediately repeat.

While the mode clears, the error stays in TCM memory as a historical code. If issues such as faulty wiring, a clogged solenoid, or low fluid pressure persist, limp mode will return once the original triggering conditions recur.

A recurring, self-clearing limp mode is a vital clue suggesting an intermittent electrical or hydraulic issue instead of total component failure.

The distinction helps narrow the diagnosis. Shift solenoid failure usually causes gear-specific issues, such as skipping a gear, sticking during shifts, or refusing to upshift.

These failures occur during specific gear changes. Conversely, pressure-control solenoid failure often causes harsh shifts across all gears, slipping under load, or limp mode at high throttle when line pressure demand peaks.

Pressure control faults are also more prone to causing overheating, as incorrect line pressure impacts clutch pack engagement across every gear.
