Peugeot 104 Berline Workshop Manual and Repair Guide
The Peugeot 104 Berline workshop manual is the practical starting point for keeping a classic 104 reliable, roadworthy, and correctly repaired.
Covering the 1972–1988 Peugeot 104 range, this category is useful for owners searching for a Peugeot 104 Berline repair manual, service manual PDF, factory service manual, wiring diagram, or troubleshooting guide for 954 CC, 1124 CC, and 1219 CC cars.
Peugeot’s heritage source describes the original 104 as a compact four-door model launched with a 954 CC engine, with a total 104 production of 1,624,992 cars between 1972 and 1988.
Finding the Right Manual for Your Peugeot 104 Berline

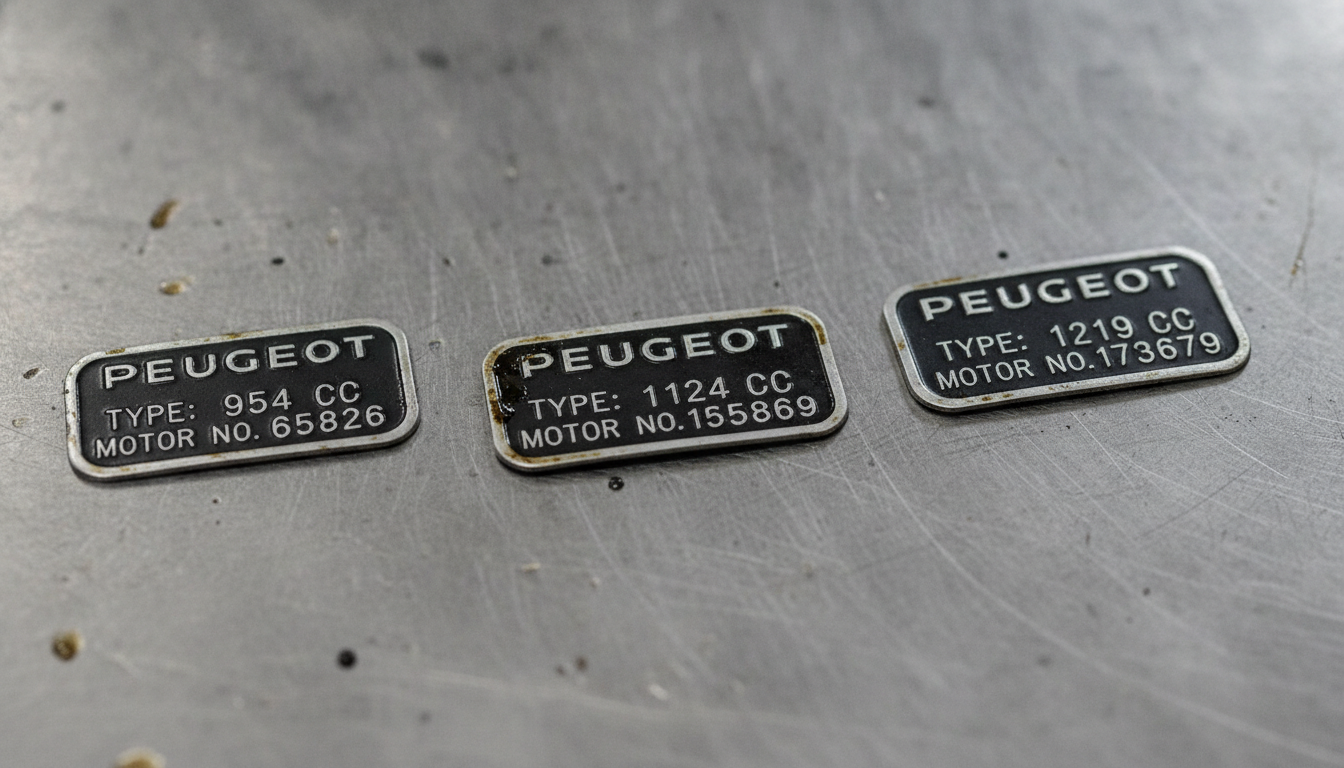

Choosing the correct Peugeot workshop manual matters because the 104 Berline changed by year, trim, and engine.
Early cars are commonly associated with the 954 CC XV engine, many mid-range models used the 1124 CC XW engine, and later or higher-spec Berline versions included the 1219 CC XZ engine.
The 1980 UK brochure range, for example, listed GL, GR, and SR versions with 954 CC, 1124 CC, and 1219 CC engines respectively.
Use the year, trim badge, and engine size together. A 1976 SL manual will not always match a late GLS, while a 1219 CC SR may need different engine and tune-up data from a 954 CC GL.
The 1980 Peugeot 104 SR workshop service repair manual is a useful match for the 1219 CC SR specification, while the 1980 Peugeot 104 GL repair manual is better suited to GL maintenance and trim-specific repair checks.
| Manual match |
Best for |
Useful repair focus |
| 1972–1975 104 manuals |
Early 954 CC Berline models |
Servicing, carburetor setup, brakes, and early wiring |
| 1976–1978 L, GL, GL6, SL manuals |
Facelift-era cars |
Body repairs, clutch adjustment, and rust checks |
| 1979–1980 GL, GL6, GR, SR, S manuals |
Broader trim range |
954, 1124, and 1219 CC maintenance |
| 1981–1983 104 manuals |
Later GL, GR, SR, and S cars |
Electrical diagnosis and driveline repairs |
| 1984–1988 GLS manuals |
Late 1124 CC GLS cars |
Final-series service data and preservation work |
What Is Included in a Peugeot 104 Repair Manual?

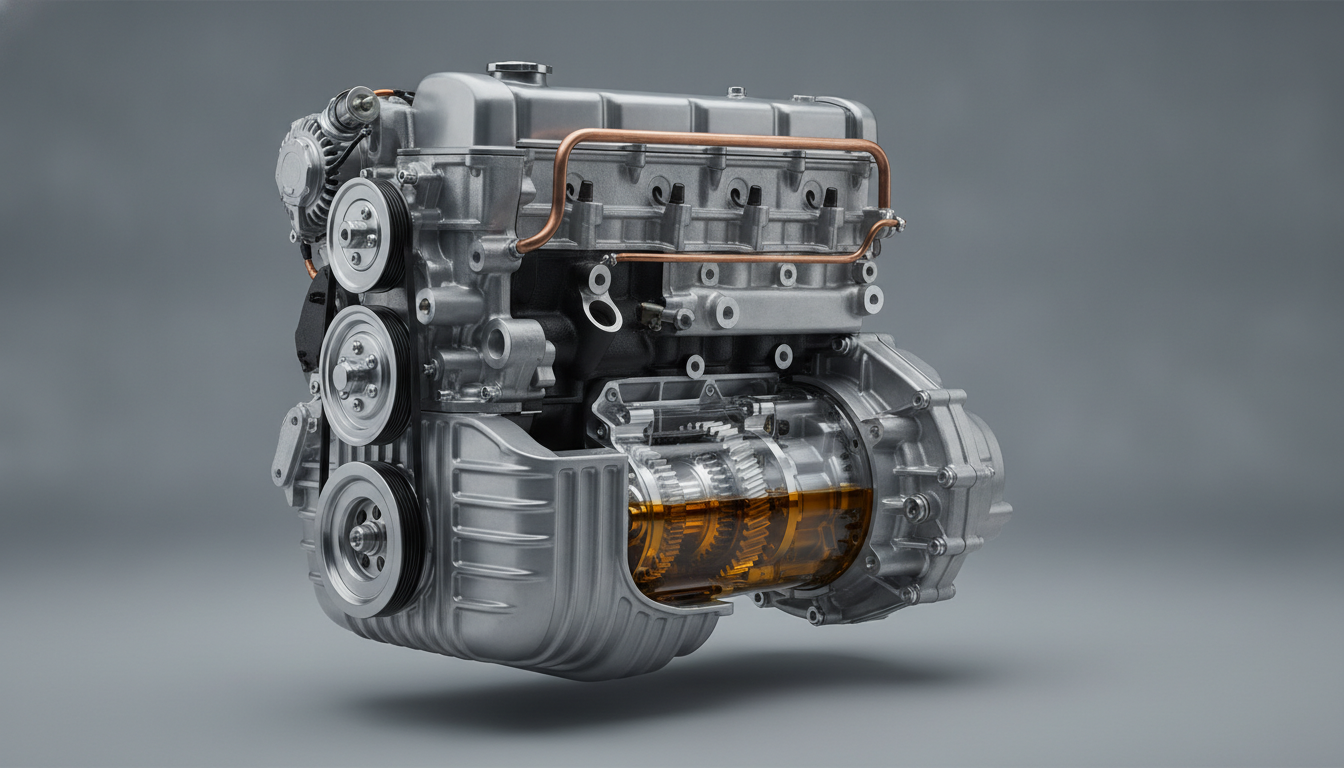

A good Peugeot 104 service manual gives more than basic oil-change instructions. The 104 uses a compact transverse four-cylinder engine layout with the gearbox positioned in the sump, a design that helps packaging but can make some repairs harder to access. Notes that jobs such as clutch, transfer gears, timing chain, cylinder head, and gearbox work can require major disassembly, which is why clear workshop instructions are so valuable.
Typical Peugeot 104 Berline manual coverage includes:
- Engine service procedures for 954 CC, 1124 CC, and 1219 CC petrol engines
- Carburetor adjustment, ignition timing, tappet checks, and tune-up data
- Cooling system repair, thermostat checks, fan operation, and radiator service
- Clutch, gearbox, and driveshaft procedures for front-wheel-drive models
- Brake repair, wheel bearing checks, steering, and suspension inspection
- Body repair guidance for sills, floorpans, scuttle areas, and door posts
- Wiring diagrams, fuse information, lighting circuits, and charging checks
- Torque settings and troubleshooting charts for DIY or workshop use
Common Peugeot 104 Berline Repairs and Problems Covered
The Peugeot 104 is simple by modern standards, but age and compact packaging create specific repair concerns.

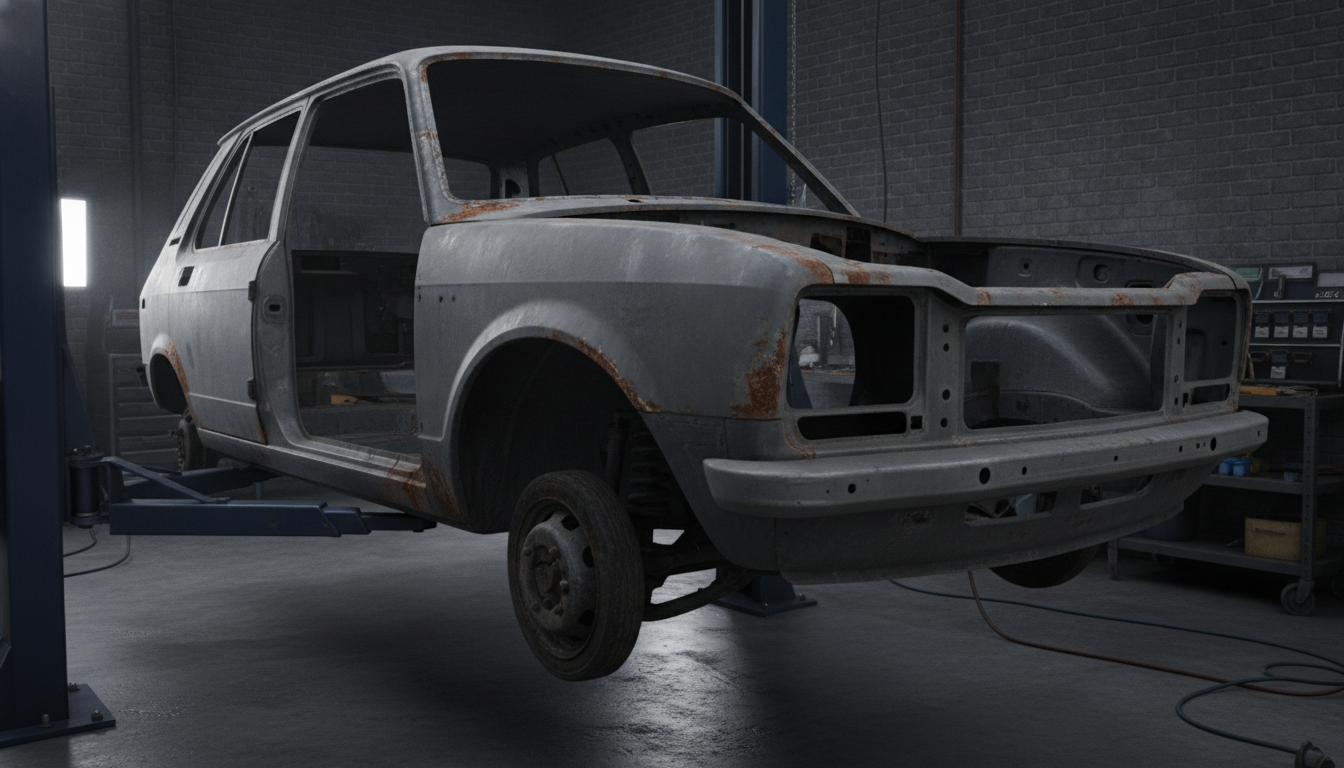

The biggest issue with many surviving cars is rust repair. Owner guides point to rust in the inner and outer wings, bonnet catch crossmember, scuttle below the windscreen intake, sills, floorpans, seat-belt mounts, rear suspension mounting areas, and rear arches.
These are not cosmetic details; they affect safety, alignment, and long-term restoration quality. Mechanical issues often involve cooling, gear selection, clutch adjustment, driveshaft boots, wheel bearings, and engine mounts.
Regular oil and filter changes are especially important, and enthusiast guidance warns that the correct filter specification matters because oil drain-back can starve the camshaft during cold starts.
Manuals in this category help with practical jobs such as:
- Diagnosing overheating, failed cooling fans, or blocked radiators
- Adjusting clutch free play and checking cable wear
- Repairing sloppy or stiff gear linkages
- Replacing brake parts, wheel bearings, and driveshaft boots
- Inspecting suspension struts, rear trailing arms, and shock absorbers
- Treating corrosion before welding or paintwork
- Checking carburetor jets, fuel filters, and ignition components
For late-1970s cars with more trim and engine variation, the 1979 Peugeot 104 GL6 workshop manual is helpful for GL6-specific service checks, while the 1978 Peugeot 104 Sundgau manual suits the special-edition repair and maintenance needs of that model year.
Wiring Diagrams and Electrical Troubleshooting

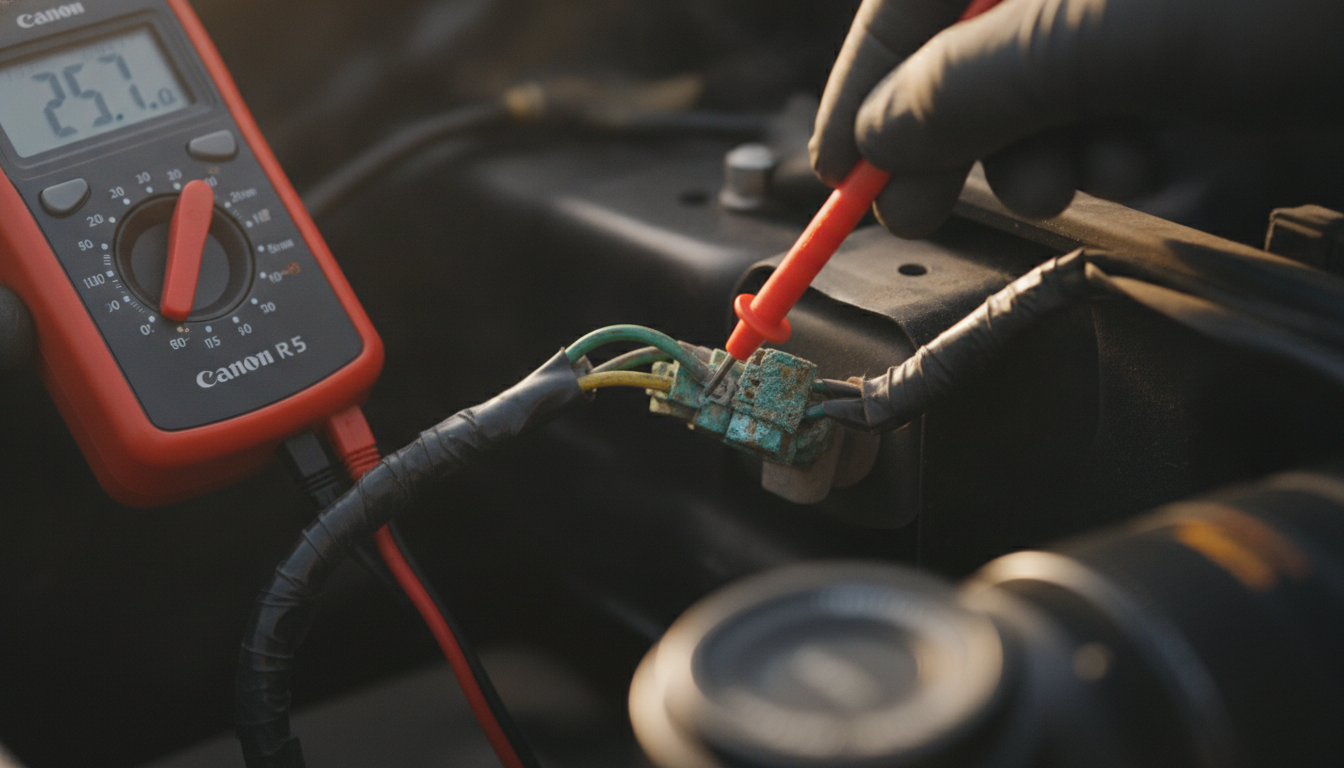

A Peugeot 104 wiring diagram is valuable because electrical faults on older cars are often caused by poor earths, tired connectors, damaged switchgear, or previous repairs.
On the 104, the owner reports lighting faults, oddities with indicator warning lights, wiper self-park problems, and non-canceling indicators. Specifically, it notes that strange indicator behavior can be caused by a corroded earth.
Use the manual when checking headlights, rear lamps, alternator charging, starter wiring, ignition switch feeds, fuse box connections, fan wiring, dashboard warning lamps, and earth points.
This is especially important during restoration, when old insulation, water leaks, or hidden corrosion can disturb original wiring routes.
Peugeot 104 Berline Manual Types and Models Covered
Peugeot 104 Berline 954 CC Manuals
Cover early and lower-spec cars, including the base 104, L, and GL models. They are useful for simple servicing, ignition tuning, carburetor adjustment, braking work, and early body repairs.
Peugeot 104 Berline 1124 CC Manuals
Suit many SL, GL6, GR, and later GLS cars. Choose these for mid-range engine maintenance, clutch setup, suspension service, or tune-up work. The 1976 Peugeot 104 SL workshop manual is a practical example for owners restoring a mid-1970s SL.
Peugeot 104 Berline 1219 CC Manuals
Most relevant to SR models and other higher-spec Berline applications around 1978–1983. These manuals support the checks of the larger engine, cooling system, carburetor, and driveline.
Peugeot 104 GL and L Manuals
Focus on straightforward trim, early service requirements, and practical maintenance for 1970s cars. They are ideal for owners who want a simple Peugeot repair manual online for routine servicing and light restoration.
Peugeot 104 GL6 and SL Manuals
Cover cars with a wider range of trim, equipment, and engine options. They are helpful for brake, clutch, wiring, and bodywork jobs.
Peugeot 104 GR and SR Manuals
Cover better-equipped Berline models. The GR is commonly linked to 1124 CC servicing, while SR manuals cover 1219 CC repair data, drivability checks, and trim-specific maintenance.
Peugeot 104 S Manuals
Useful where the category includes sportier Berline-related variants and higher-performance service procedures. Select them only when your trim badge, engine, and model year match.
Peugeot 104 GLS Manuals
For cars from late 1984 to 1988, usually with the 1124 CC engine. The 1988 Peugeot 104 GLS service manual is best suited to final-series maintenance, electrical checks, and preservation work.
Commonly Asked Questions About the Peugeot 104 Berline
Is a Peugeot 104 Berline workshop manual different from a repair manual?
Usually, the terms overlap. For the Peugeot 104 Berline, both should include service procedures, mechanical repairs, troubleshooting, and wiring information.
Which Peugeot 104 Berline engine size should I choose?
Match the manual to your engine: 954 CC, 1124 CC, or 1219 CC. Also, check the model year and trim badge, because GL, GL6, SL, GR, SR, and GLS versions can have different equipment and service data.
Do these manuals include wiring diagrams?
Most workshop-style manuals include wiring diagrams or electrical schematics. They help with lighting faults, charging issues, ignition feeds, fuse-box checks, fan circuits, and bad earth diagnosis.
Can I use a later Peugeot 104 manual for an earlier car?
Only for general reference. Early 954 CC cars and later GLS or SR models may differ in trim, wiring, engine setup, and service specifications. The safest choice is the correct year, trim, and engine manual.
Are these manuals useful for restoration?
Yes. A proper Peugeot 104 Berline maintenance guide covers rust-prone body areas, suspension mounting checks, wiring repairs, brake overhauls, engine servicing, and proper reassembly.
Choose the Peugeot 104 Berline manual that matches your year, engine size, and trim level, then use it before starting diagnosis, servicing, or restoration. The right manual saves time, reduces guesswork, and helps keep this classic small Peugeot maintained correctly.
