Peugeot 106 Workshop Manual and Repair Manual PDF
The Peugeot 106 workshop manual is the quickest way to repair, service, diagnose, and maintain this lightweight French hatchback correctly.
Built across the 1991–2003 model run, the 106 covered basic 954 cc and 1124 cc city models, 1361 cc TU petrol versions, economical 1.4D and 1.5D diesels, sporty XSi/Rallye/GTi/S16 trims, and the rare Peugeot 106 Electrique.
Peugeot’s range began with 1.0, 1.1, and 1.4 petrol cars, later adding diesel and five-door versions, while common used-car concerns include suspension/axle wear, coolant leaks, gearbox linkage issues, and rust checks.
Finding the Right Manual for Your Peugeot 106
Choosing the correct Peugeot 106 repair manual PDF depends on more than the badge on the boot. Match the year, phase, engine size, fuel type, injection system, trim, and body style before downloading.
A 1.3 Rallye, 1996 XSi, 2001 GTi, and 2003 1.5D Zest do not always share the same engine management, wiring layout, or service data.
| Peugeot 106 version |
Years covered |
Manual focus |
| 1.0 / 954 cc petrol |
1991–2000 |
Basic servicing, ignition, cooling, clutch, and brake repairs |
| 1.1 i / 1124 cc TU1 |
1992–2003 |
Fuel injection, idle faults, timing belt, and routine maintenance |
| 1.3 i / 1294 cc Rallye |
1993–1996 |
TU2J2 service data, suspension, brakes, and gearbox work |
| 1.4 i / 1361 cc TU3J, TU3MC, TU3JP |
1992–2003 |
Engine timing, sensors, emissions systems, and drivability diagnosis |
| 1.4D / 1.5D diesel |
1992–2003 |
TUD servicing, glow plugs, injection pump checks, and cooling repairs |
| 1.6 i 8v / GTi / S16 / XSi |
1991–2003 |
Sport-model engine, MA gearbox, clutch, brakes, suspension, and ECU checks |
| Electric Motor SA13 / Electrique |
1995–2003 |
Battery, charger, motor control, safety checks, and electric diagnostics |
For example, a later TU3JP car is best matched with a model-specific guide, such as the 2003 Peugeot 106 Restyling 1.4L i 75 TU3JP 5-door workshop manual, while a hot-hatch owner should use a dedicated GTi, Rallye, XSi, or S16 service manual rather than a generic city-car guide.
What Is Included in a Peugeot 106 Workshop or Repair Manual?
A useful Peugeot 106 service manual PDF provides structured repair information rather than scattered forum advice. Depending on the manual, you can expect:
- Engine service procedures for timing belt alignment, cooling-system bleeding, oil service, filters, spark plugs, and diesel glow plugs
- Fuel and ignition diagnosis for injectors, throttle bodies, sensors, coil packs, idle control, and ECU checks
- Diesel repair data for 1.4D and 1.5D TUD engines, including injection pump, leak-off pipes, fuel filter, and starting faults
- Transmission guidance for clutch replacement, gear linkage adjustment, driveshafts, seals, and MA gearbox troubleshooting
- Brake and suspension procedures for discs, drums, rear beam inspection, dampers, bushes, and wheel bearings
- Wiring diagrams for fuse boxes, relays, charging circuits, lighting, cooling fan, ignition, instrument cluster, and immobilizer circuits
- Torque settings and specifications for safe reassembly after engine, steering, brake, or suspension repairs
Common Peugeot 106 Repairs and Problems Covered

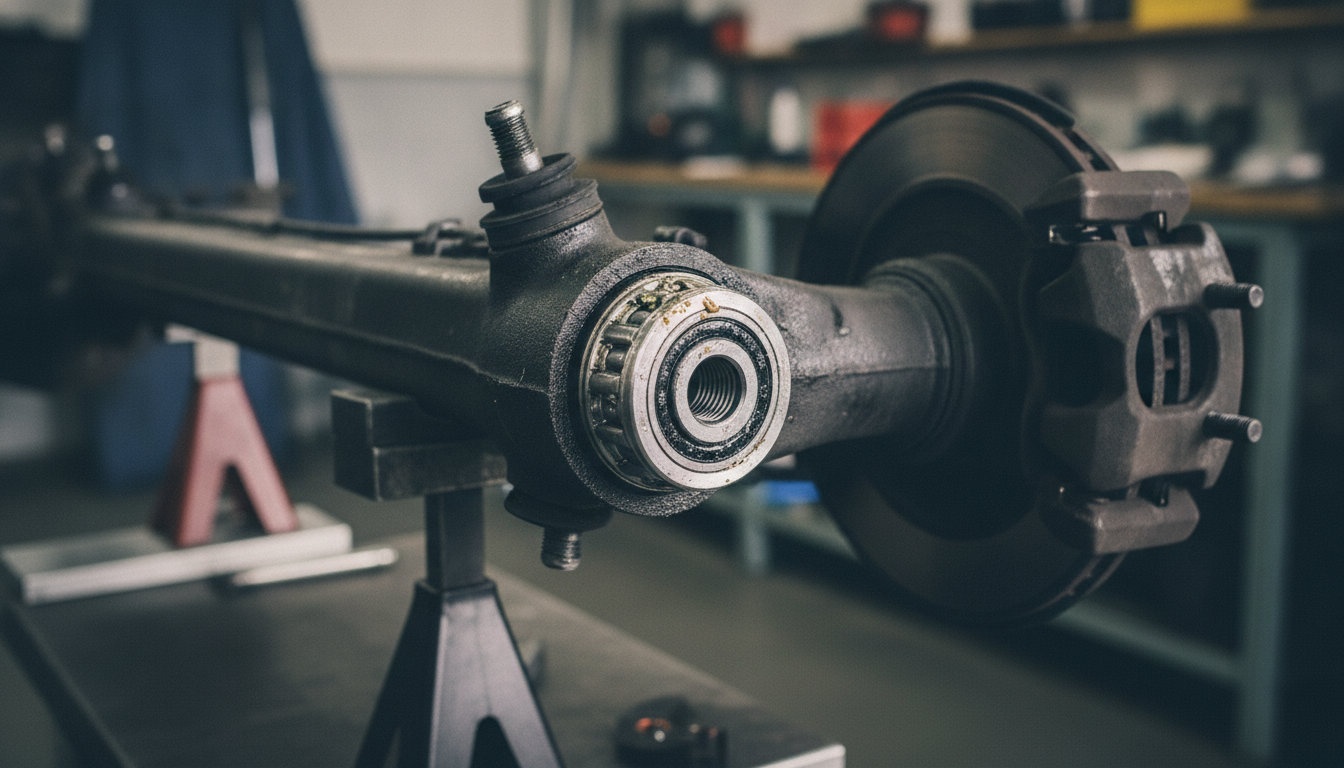

Owners usually search for a Peugeot 106 repair manual online when a small problem becomes difficult to trace. The rear torsion-beam axle is one of the most discussed areas: worn rear-beam bearings can cause negative camber, inner-rear tire wear, knocking, or a leaning rear wheel.
Gear selection is another regular repair topic. Auto Express noted that gear linkages can become sloppy, making first and reverse difficult to engage, and owner forums also describe hard selection or notchy gear changes on GTi models.
A manual helps separate a clutch adjustment problem from worn linkages, gearbox oil issues, mounts, or internal gearbox damage.
Cooling and engine problems are also important on older 106s. A workshop guide is useful for checking radiators, hoses, thermostat operation, fan switches, water pumps, head gasket symptoms, oil leaks, and the correct installation of the timing belt.
For performance models, a guide such as the 1997 Peugeot 106 1.6i Rallye workshop service repair manual can be especially helpful, as the Rallye rewards accurate servicing and proper suspension setup.
Wiring Diagrams and Electrical Troubleshooting
Electrical problems on the Peugeot 106 can be simple but frustrating without a clear Peugeot 106 wiring diagram. Owners commonly chase non-start faults, intermittent misfires, battery drain, poor earths, cooling fan faults, alternator charging issues, dashboard warning lights, fuse box problems, immobilizer faults, and lighting issues.
Honest John discussions mention water reaching a wiring loom connection and corroding the power-supply pin on a coil-pack related fault, while another thread points to battery earth-side checks for unusual electrical behavior.
A factory-style wiring section lets you trace power, ground, relays, and connectors instead of replacing parts at random. This is useful for GTi/S16 engine looms, late 1.1i and 1.4i injection systems, and the rare Electrique.
For the battery-powered version, the 1999 Peugeot 106 Electric Electrique workshop service repair manual is more relevant for information on the charger, battery, motor control, and safety.
Peugeot 106 Manual Types and Model Coverage
Because the Peugeot 106 was produced with a diverse range of engines, transmissions, and trim levels, selecting the correct manual is essential for accurate repairs. The following guides are tailored to specific model years and configurations, ensuring you have the precise service data, torque settings, and wiring diagrams your vehicle needs.
Peugeot 106 1.0 / 954 cc Manuals
These manuals suit early entry-level 106 models where simple servicing matters most. They are practical for oil service, ignition checks, clutch work, cooling repairs, brakes, and basic electrical diagnosis.
Peugeot 106 1.1 i / 1124 cc Manuals
The 1.1 i Peugeot 106 manual covers one of the most common everyday versions. It is ideal for timing belt service, idle fault diagnosis, throttle body cleaning, sensor testing, fuel injection checks, and maintenance. Later owners can also use a model-specific option, such as the 2003 Peugeot 106 1.1i Zest workshop service repair manual.
Peugeot 106 1.3 i Rallye Manuals
The 1.3 Rallye manual should cover accurate engine timing, TU2 service checks, gearbox care, steering, suspension geometry, brake condition, and body restoration details.
Peugeot 106 1.4 i TU3J, TU3MC and TU3JP Manuals
These guides cover 1361 cc petrol engines across early and restyled cars. They are useful for injection faults, emissions checks, cooling issues, timing belt work, and wiring differences between Phase 1 and Phase 2 models.
Peugeot 106 Diesel 1.4D and 1.5D Manuals
Diesel manuals focus on TUD engine maintenance, glow-plug diagnosis, fuel leaks, injection pump checks, cooling hoses, and reliable starting. For late diesel trims, the 2003 Peugeot 106 1.5D Zest 2 workshop service repair manual is a useful match.
Peugeot 106 XSi, Le Mans, GTi, and S16 Manuals
Sport manuals cover higher-output cars: clutch and gearbox service, driveshafts, brakes, suspension bushes, ECU wiring, cooling, and body checks. Use the 1996 Peugeot 106 XSi workshop manual for XSi-specific repairs or the 2001 Peugeot 106 GTi workshop service repair manual for later 1.6 16v GTi work.
Peugeot 106 Electrique SA13 Manuals
The Electrique manual is different from petrol and diesel guides. It should cover SA13 electric motor systems, battery condition, charging checks, coolant for battery thermal management where applicable, safety isolation, and control-system troubleshooting. The 106 Electrique used a compact electric drivetrain with NiCd battery technology, making the correct manual especially important.
Commonly Asked Questions About the Peugeot 106
Is a Peugeot 106 workshop manual the same as an owner’s manual?
No. An owner’s manual explains controls, warnings, and basic checks. A workshop manual gives repair procedures, torque settings, wiring diagrams, component removal steps, and troubleshooting information.
Which Peugeot 106 manual should I choose?
Choose by year, engine, fuel type, and trim. A 1.5D diesel, 1.4i TU3JP, Rallye, XSi, GTi, and Electrique each need different repair information.
Does the manual include wiring diagrams?
Most workshop and factory-style manuals include wiring diagrams, fuse and relay information, connector locations, and electrical troubleshooting steps. Always check the product details before choosing.
Are Peugeot 106 repair manuals useful for restoration?
Yes. They help with body trim removal, suspension rebuilds, brake renewal, rear axle inspection, electrical repairs, engine servicing, and correct reassembly after restoration work.
Choose the manual that matches your exact Peugeot 106 model, engine, and year. The right Peugeot 106 repair manual PDF saves time, reduces guesswork, and gives you clearer steps for servicing, fault-finding, and repair.
